Mini Video Projector, Screenless Computer 1080P Supported,30000 Hours LED Silver B5

Type

Details

Standard Configuration

Product Form

Type

Screenless computer (Windows smart portable projector)

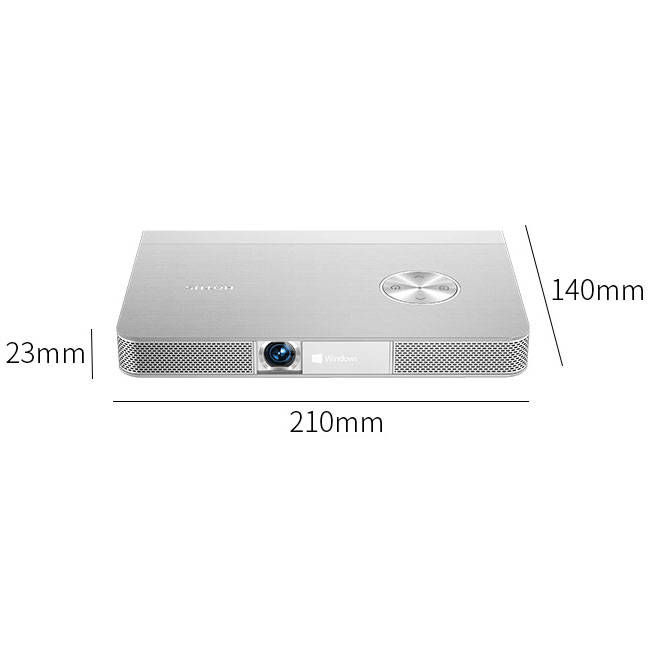

Dimension

210*140*23mm

Weight

Device unit: 725g ，Unit with giftbox and standard accessories:1570g

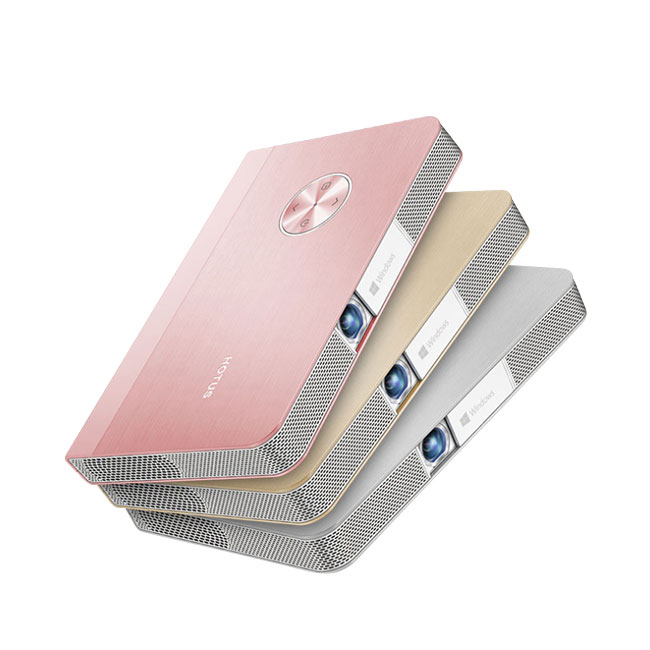

Device Color

Silver, Rose gold, champaign gold

Speaker

Built-in

Embedded 8Ω/0.8W waterproof speaker x 2

Battery

Type

Lithium-ion polymer battery

Capacity

3.7V/12000mAh

Endurance

1-2hrs(default 50% volumn，default350nit，play 1080P HD video)

Battery Features

Over-discharge & Overcharge Protection

Electrical

Power

45W

Noise

＜30dB

Optical  Configuration

Type

Details

Description

 Optical

display technique

0.3"DMD,RGB-LED，TI DLP digital optical processing projection technology

Lens

High transmittance coating lens

Light Source Brightness

350ANSI

Illumination Evenness

98%

 Dynamic Contrast Ratio

5000:1

Normal Resolution

720P（1280*720), 1080P, 2K, 4K be available

Color Gamut

≥120%NTSC

Projection

Image Size

20 - 200 inches

LED Life

30000 hours

Throw Ratio

1.6 : 1

Focus

Manual focus

Off-axis

100%

Keystone Correction

Vertical ±40 °

Projection Mode

Front / Rear / Ceiling

Software Configuration

Type

Details

Description

Operation System

OS version

windows 10 Home 32bit/64bit activated
English version

System Hardware Configuration

Type

Details

Description

CPU

Type

Intel  ® Atom  processor  Z3735F

Speed

1.33Ghz-1.33GHz

RAM

DDR3L

2GB  (4GB can be customized)

ROM

Emmc

32GB / 64GB

Audio / Video

Video Format

MP4 / 3GP / MOV / MKV / AVI / FLV / MPEG

Audio Format

FLAC / APE / AAC / MKA / OGG / MIDI / M4A / AMR

Network Connections

Type

Details

Description

WIFI

WIFI Module

WIFI 802.11(a/b/g/n)   Frequency 2.4G

Bluetooth

Built-in

BT4.0 (BLE) class1  transmission distance：10m

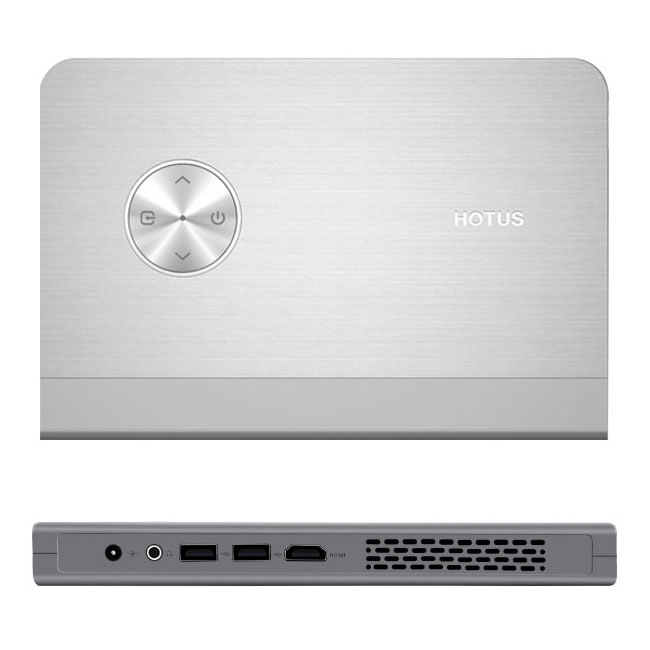

Interface Configuration

Type

Details

Description

USB Interface

Extend external memory
 and data transfer

USB 2.0*1 （Host）for windows  OTG  x1

USB Interface

Extend external memory
and data transfer

USB 3.0*1 （Host）for windows  OTG  x1

HDMI

Video Output

HDMI 1.4a Type C  x1，Support 480P, 720P, 1080P

Earphone Jack

Audio Output

∮3.5mm standard earphone jack  x1

DC Jack

Power

DC 19V 2.2A  Power connector  x1

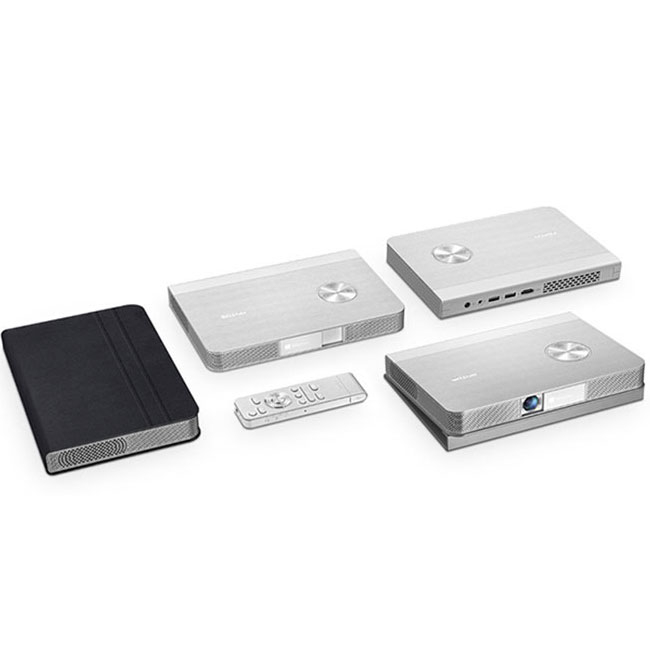

Standard Accessories

Type

Details

Description

Remote control

Dimension

152*47*8mm

Color

Black（frant and rear Panel: black，push-button: black）

Built-in

2.4G wireless technology   transmission distance：10m

Function button

Direction*4   Air Mouse*3   VOL*3   Power*1   Click to Connect to Internet*1   Source*1    Optical Component ON/OFF*1   Menu*1   Back*1   Auto Focus*1

Quick Start Guide

Type

Instructions

Wiping cloth

Type

Superfine fiber material

Power Adaptor

Standard

AC100V ~ 240V、50Hz/60Hz output DC 19V/2.2A

Reliability

Type

Details

Description

Product
Reliability

Operate Temperature

‘-20 °C to 60 °C  -4 °F to 140 °F

Store Temperature

’-30 °C to 70 °C / -22 °F to 158 °F

Humidity

Humidity: 95% Non-Condensing
