NCD
Article | NCD10-MF (EF) | NCD15-MF(EF) | NCD20-MF (EF) | NCD18-MF(EF) | NCD22-MF (EF) |
Power (full mode), W | 1000 | 1500 | 2000 | 1800 | 2200 |
Power (1/2 mode), W | 500 | 750 | 1000 | 900 | 1100 |
Voltage and frequency, V/Hz | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 |
Rated current, A | 4.3 | 6.5 | 8.7 | 8.7 | 10.9 |
IP protection class | IP 24 | IP 24 | IP 24 | IP 24 | IP 24 |
IEC protection class | Class I | Class I | Class I | Class I | Class I |
Unit dimensions (WHD), mm | 480x404x94 | 640x404x94 | 800x404x94 | 640x404x94 | 800x404x94 |
Package dimensions (WHD), mm | 575x445x157 | 735x445x157 | 895x445x157 | 735x445x157 | 895x445x157 |
Net weight, kg | 3.5 | 4.1 | 5.1 | 3.6 | 4.6 |
Gross weight, kg | 4.29 | 5.2 | 6.4 | 4.5 | 5.9 |

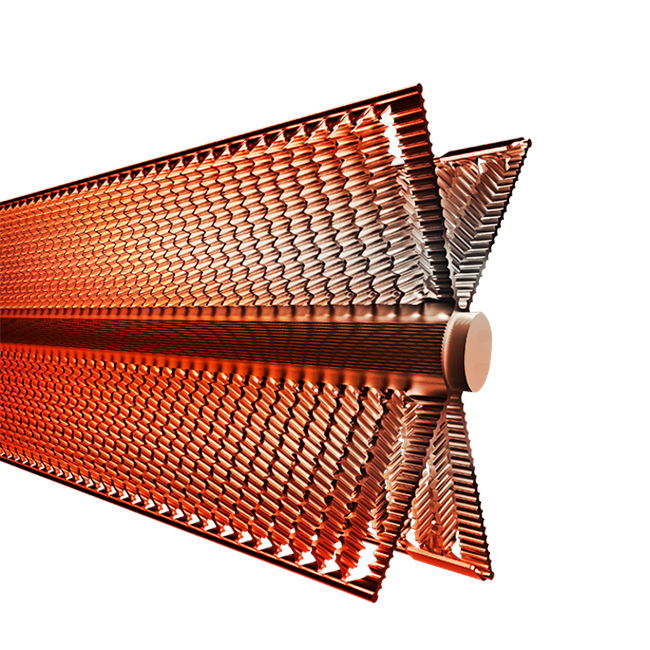

Heating unit | SX-DUOS | SX-DUOS | SX-DUOS | HEDGEHOG | HEDGEHOG |
Article | NCD10-MF (EF) | NCD15-MF(EF) | NCD20-MF (EF) | NCD18-MF(EF) | NCD22-MF (EF) |
Power (full mode), W | 1000 | 1500 | 2000 | 1800 | 2200 |
Power (1/2 mode), W | 500 | 750 | 1000 | 900 | 1100 |
Voltage and frequency, V/Hz | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 |
Rated current, A | 4.3 | 6.5 | 8.7 | 8.7 | 10.9 |
IP protection class | IP 24 | IP 24 | IP 24 | IP 24 | IP 24 |
IEC protection class | Class I | Class I | Class I | Class I | Class I |
Unit dimensions (WHD), mm | 480x404x94 | 640x404x94 | 800x404x94 | 640x404x94 | 800x404x94 |
Package dimensions (WHD), mm | 575x445x157 | 735x445x157 | 895x445x157 | 735x445x157 | 895x445x157 |
Net weight, kg | 3.5 | 4.1 | 5.1 | 3.6 | 4.6 |
Gross weight, kg | 4.29 | 5.2 | 6.4 | 4.5 | 5.9 |
Heating unit | SX-DUOS | SX-DUOS | SX-DUOS | HEDGEHOG | HEDGEHOG |
