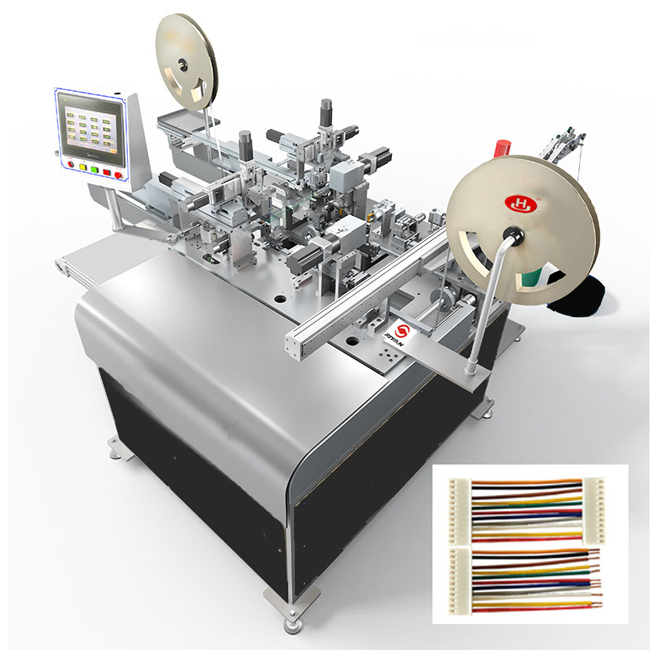

HC-A01 Fully Automatic 2-12 Line Single-end Tipping Tin Piercing Shell Machine

1. Personalized design, firm and concise structure 2. The computer operating system is adopted, the operation interface is simple and reasonable, and the operation of the machine can be quickly mastered. All parameters can be conveniently set and stored. The operation instruction image is displayed, which is intuitive and simple
Availability:
Quantity:
Inquire Add to Basket

  • HC-01

  • $1000-$2000

  • 1 Piece

  • 30-45 days

1.Personalized design, firm and concise structure

2.The computer operating system is adopted, the operation interface is simple and reasonable, and the operation of the machine can be quickly mastered. All parameters can be conveniently set and stored. The operation instruction image is displayed, which is intuitive and simple



Model: HC-01
Capacity: 780 strips/hour within 200mm, 100mm length, 12 digits/group 660 groups/hour, 2 digits/4 digits/group, 2640 ~ 2700 groups/hour
Applicable wire diameter: AWG#24~AWG#16
Processing length: 55mm~500mm in the middle part of the skin, other specifications are customized
Stripping length: 2.5mm~15mm ideal range
Cutting error: can be corrected
Pressing ability: 2.0 Ton
Detection device: presence or absence of terminals, line detection, terminal detection
Auxiliary device: terminal waste paper winding device
Power supply: AC220 single-phase 10A
Special functions:  single-headed, double-headed, interval, positive and negative
Working air pressure: 0.8MP (air source requires dry filtration)
Weight: 600kg
Size:1340*1340*2300mm
