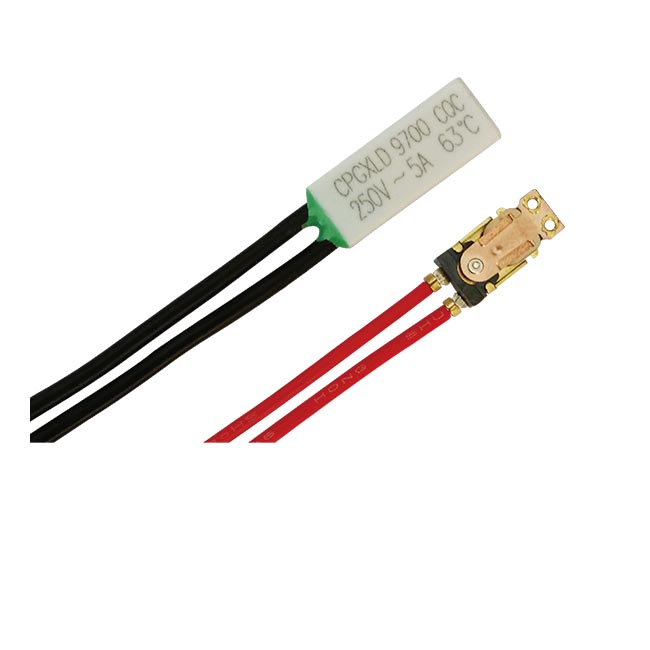

9700 Thermal Protector

Quantity:

Product Size Chart:


1、LEAD OUT LINE

2、EPOXY RESIN

3、CERAMIC PEDESTAL

4、MOVABLE CONTACT

5、TOUCHES

6、SHELL

7、STATIC TOUCH

8、BASE

9、TEMPERATURE SENSITIVE FILM



D:this size can be customized according to customer requirements, with a standard length of 70mm.

TYPE

SIZE(MM)


A

B

C

9700-A

20.0

7.5

3.7

metal outer

9700-B

20.0

8.2

4.3

plastic shell


line graph


Technical information:

Setting the restorable temperature according to the user's requirement.

The life-span is 10000 cycles atrated load.

Dielectricst strength: 50Hz, 2000V, no flashover or breakdown for 1Min.

Osculaled resistance≤5MΩ

Insulated resistance>100MΩ

Two mdes of connecting the link: offen closed or often opened.

Control temperature range:55-150, plus or minus 3K.

Operating voltage and current:250V 5A


Instruction:

The thermal protector applies to the motor, ballast, other electrical equipment, household appliances. It prevents the appliances from the dangerous high temperature and avoids accident.

Since the thermal protector is sealed, it can work very well under bad circumstance. When the shell is metal, which is charged body, please wear the high temperature insulated glove that our factory supplied.when installing.

Please choose the thermal protectors according to the voltage and current.

Please pay more atteniion to the leads when Installing, if the leads assemble badly, it will affect the function of protector.


Application:

Lighting、Battery、Inductioni Cooker, Motor, Transfomnet, Electric, Electric Water Heater, Solar Water Herterand Simliar Electric Heater etc.
