Availability: | |
---|---|
Quantity: | |
NCA-C2
1000 PCS
60 days
3C、CE
Article | HCA-C2 -1000E | HCA-C2-1500E | HCA-C2-2000E |
Power (full mode), W | 1000 | 1500 | 2000 |
Power (1/2 mode), W | 500 | 750 | 1000 |
Voltage and frequency, V/ Hz | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 |
Rated current, A | 4.3 | 6.5 | 8.7 |
IP protection class | IP 24 | IP 24 | IP 24 |
QeC protection class | Class I | Class I | Class I |
「Unit dimensions (WHD), mm | 480x413x115 | 640x413x115 | 785x420x115 |
Package dimensions (WHD), mm | 575x460x157 | 735x460x157 | 895x445x157 |
Net weight, kg | 3.6 | 4.5 | 5.4 |
Gross weight, kg | 4.5 | 5.7 | 6.7 |

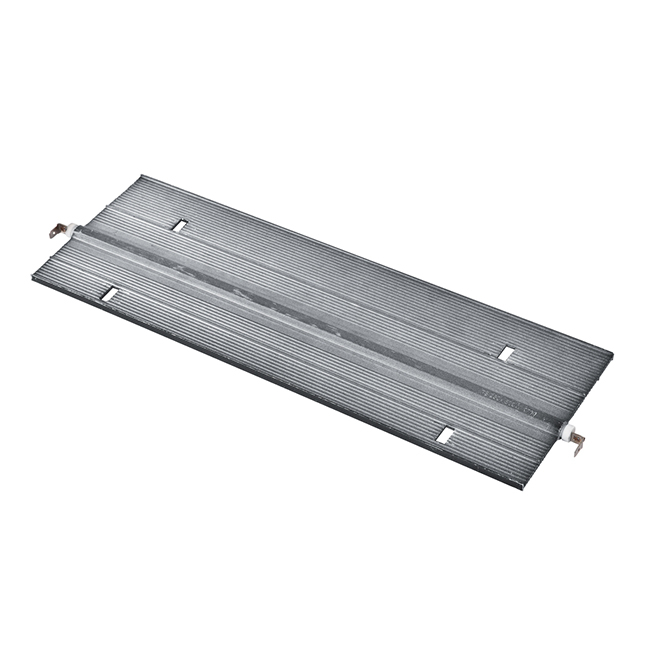

Heating unit | ANODIC COAT | ANODIC COAT | ANODIC COAT |
Article | HCA-C2 -1000E | HCA-C2-1500E | HCA-C2-2000E |
Power (full mode), W | 1000 | 1500 | 2000 |
Power (1/2 mode), W | 500 | 750 | 1000 |
Voltage and frequency, V/ Hz | 220-240,50/60 | 220-240,50/60 | 220-240,50/60 |
Rated current, A | 4.3 | 6.5 | 8.7 |
IP protection class | IP 24 | IP 24 | IP 24 |
QeC protection class | Class I | Class I | Class I |
「Unit dimensions (WHD), mm | 480x413x115 | 640x413x115 | 785x420x115 |
Package dimensions (WHD), mm | 575x460x157 | 735x460x157 | 895x445x157 |
Net weight, kg | 3.6 | 4.5 | 5.4 |
Gross weight, kg | 4.5 | 5.7 | 6.7 |
Heating unit | ANODIC COAT | ANODIC COAT | ANODIC COAT |
