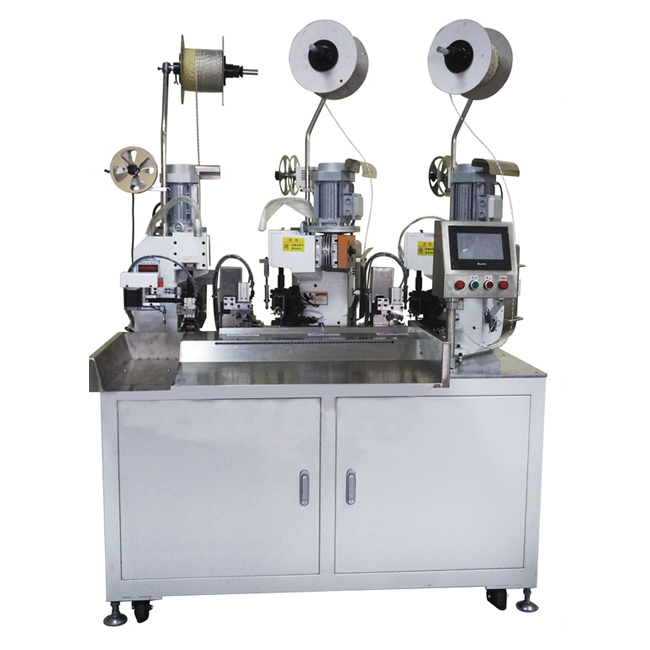

HC-A03 Fully Automatic Two-line Closing And Pressing Three-end Terminal Machine

1. Personalized design, firm and concise structure
2. The computer operating system is adopted, the operation interface is simple and reasonable, and the operation of the machine can be quickly mastered. Operation instruction image display, intuitive and simple
3. Adopt PLC control system to realize automatic thread cutting
4. Adopt imported high precision servo motor, THK high precision slide rail
5. Using imported pneumatic components
Quantity:
  • HC-A03
  • $1000-$2000
  • 1 Piece
  • 30-45 days

1. Personalized design, firm and concise structure

2. The computer operating system is adopted, the operation interface is simple and reasonable, and the operation of the machine can be quickly mastered. Operation instruction image display, intuitive and simple

3. Adopt PLC control system to realize automatic thread cutting

4. Adopt imported high precision servo motor, THK high precision slide rail

5. Using imported pneumatic components

Model: HC-A03 automatic two-line closing and pressing three-end terminal machine

Production capacity: 100mm long 2700 bars/hour

Applicable wire diameter: AWG#24~AWG#16

Processing length: 40mm~99999mm

Stripping length: ideal range of 0.1mm~25mm

Cutting error: can be corrected

Pressing ability: 2.0 Ton

Detection device: presence or absence of terminals, line detection, terminal detection

Auxiliary device: terminal waste paper winding device

Power supply: AC220 single-phase 8A

Weight: 800kg

Working air pressure: 0.6MP (air source needs to be dried and filtered)

Power: 2000W

Size: L1480mm*width 1360mm*height 1500mm
