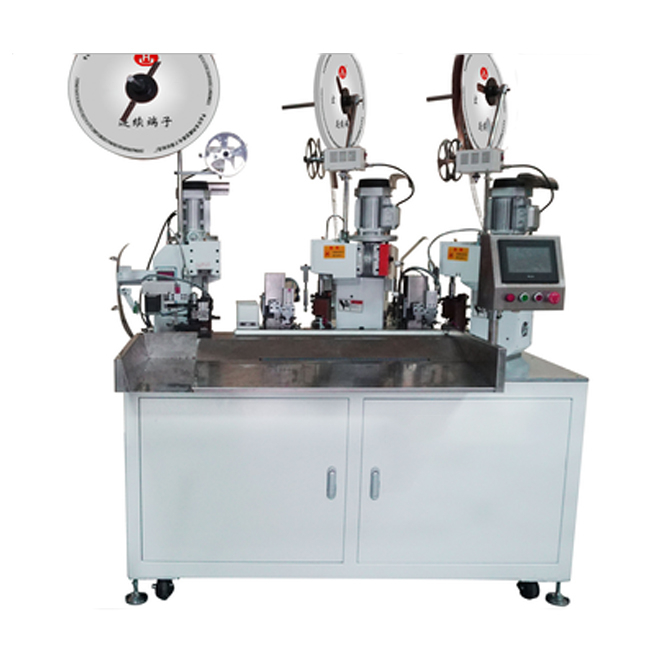

HC-A04 Fully Automatic Three-wire Four-head Terminal Machine

1. Personalized design, firm and concise structure

2. The computer operating system is adopted, the operation interface is simple and reasonable, and the operation of the machine can be quickly mastered. Operation instruction image display, intuitive and simple

3. Adopt PLC control system to realize automatic thread cutting

4. Adopt imported high precision servo motor, THK high precision slide rail

5. Using imported pneumatic components

Model: HC2018-06

Production capacity: 100mm long 2200/hour

Applicable wire diameter: AWG#24~AWG#16

Processing length: 40mm~99999mm in the middle

Stripping length: ideal range of 0.1mm~25mm

Cutting error: can be corrected

Pressing ability: 2.0 Ton

Detection device: presence or absence of terminals, line detection, terminal detection

Auxiliary device: terminal waste paper winding device

Power supply: AC220 single-phase 8A

Working air pressure: 0.6MP (air source needs to be dried and filtered)

Power: 2000W Weight: 546kg

Dimensions: length 1600mm* width 1360mm* height 1900mm
