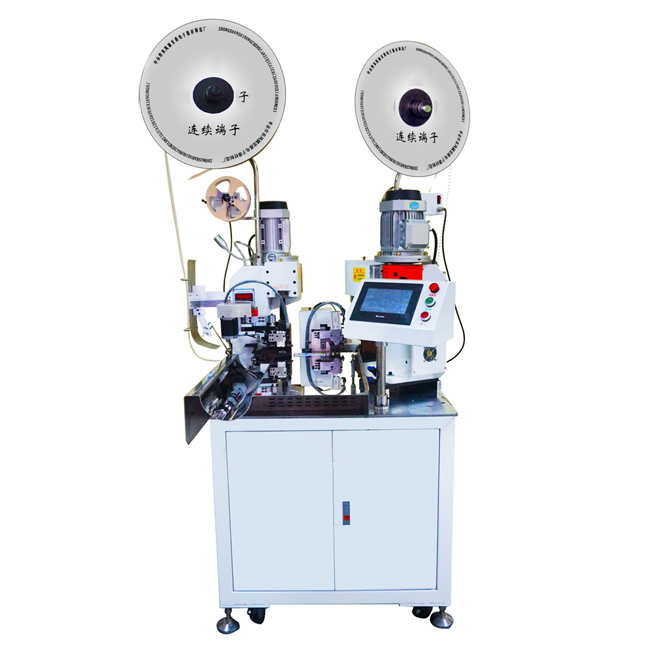

HC-A12 automatic double-head hot stripping machine

1. Adopt high precision servo motor, THK high precision slide rail,

2. The crimping machine is controlled by a high-precision frequency converter, and the pneumatic components are made of Japanese SMC, which can solve the feather dragon wire and glass fiber wire.

Model: HC-A11 automatic double-head hot stripping machine

Production capacity: 150mm long 2800 strips/hour

Applicable wire diameter: AWG#32~AWG#18

Processing length: 10mm~99999mm

Stripping length: ideal range of 0.1mm~25mm

Cutting error: can be corrected

Air pressure: 5-6Kgs (need to use clean and dry air)

Pressing ability: 2.0 Ton

Detection device: presence or absence of wires, wire overload, wire joints, poor stripping, poor die, presence or absence of terminals, terminal overload, low air pressure

Auxiliary device: terminal waste paper winding device

Power supply: AC220 single-phase 4A

Working air pressure: 0.6MP (air source needs to be dried and filtered)

Power: 2000W Weight: 390kg

Size: Width 1060mm*Depth 600mm*Height 1380mm
