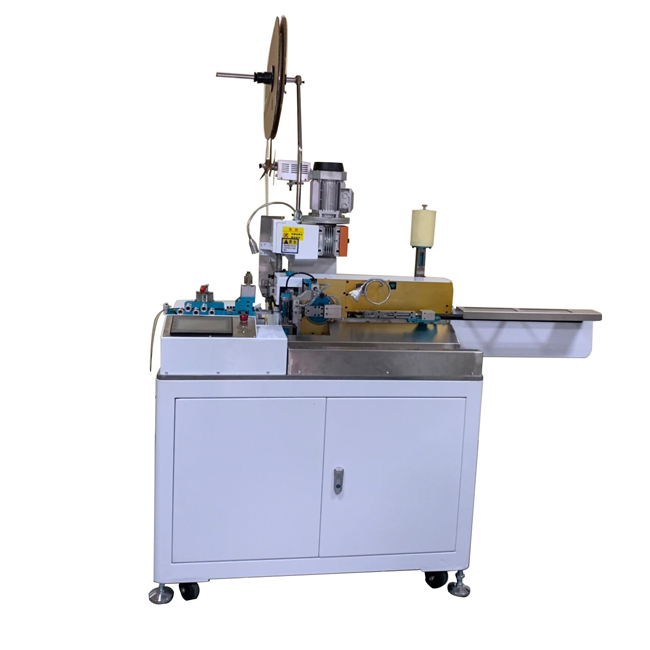

HC-A08 Automatic Single-head Stranding Line Dipping Tin Welding Machine

1. Stability: Adopt eccentric shaft and wheel transmission structure, the terminal pressure is balanced, the pressure is neat, and the finished product rate is high.
2. High precision: Servo motor driver is used to control the cable alignment, and the terminal crimping control has high precision.
3. Start-up mode: use the steering mechanism to switch the crimping direction at both ends of the cable;
4. Automation: from the incoming line to the line, cutting, peeling, crimping is completed at one time, without labor, saving labor costs;
5. Efficiency: high efficiency, pressing 18000, the machine can work 24 hours;
6. The operation is simple, the parameters are set on the touch screen, the whole operation process will be seen at a glance, and several machines can be operated by one person.
Quantity:
  • HC-A08
  • $1000-$2000
  • 1 Piece
  • 30-45 days

1. Stability: Adopt eccentric shaft and wheel transmission structure, the terminal pressure is balanced, the pressure is neat, and the finished product rate is high.

2. High precision: Servo motor driver is used to control the cable alignment, and the terminal crimping control has high precision.

3. Start-up mode: use the steering mechanism to switch the crimping direction at both ends of the cable;

4. Automation: from the incoming line to the line, cutting, peeling, crimping is completed at one time, without labor, saving labor costs; 5. Efficiency: high efficiency, pressing 18000, the machine can work 24 hours;

6. The operation is simple, the parameters are set on the touch screen, the whole operation process will be seen at a glance, and several machines can be operated by one person.

Model: HC-A07 Automatic Single-head Stranding Line

Welding Machine Capacity: 10 parallel lines/1000 lines/hour (calculated according to the parallel number)

Applicable wire diameter: AWG#32~AWG#18

Processing length: 50mm-600mm Stripping length: 0-7mm

Cutting error: can be corrected

Pressing ability: 2.0 Ton

Auxiliary device: terminal waste paper winding device

Power supply: AC220 single-phase 4A

Working air pressure: 0.6MP (air source needs to be dried and filtered)

Power: 2000W Weight: 390kg Size: L1700mm*W730*H1500(mm)
