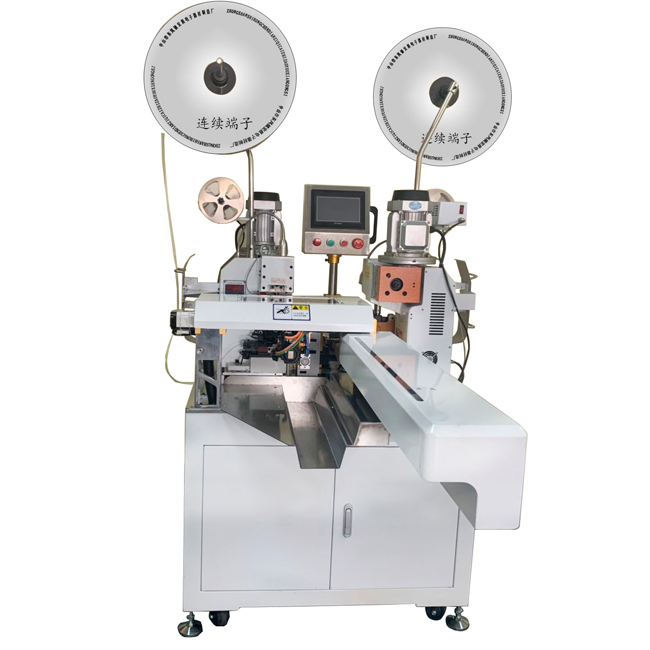

HC-A06 Fully Automatic Double-end Cable Terminal Machine

1. Stability: Adopt eccentric shaft and wheel transmission structure, the terminal pressure is balanced, the pressure is neat, and the finished product rate is high.
2. High precision: Servo motor driver is used to control the cable alignment, and the terminal crimping control has high precision.
3. Start-up mode: use the steering mechanism to switch the crimping direction at both ends of the cable;
4. Automation: from the incoming line to the line, cutting, peeling, crimping is completed at one time, without labor, saving labor costs;
5. Efficiency: high efficiency, pressing 18000, the machine can work 24 hours;
6. The operation is simple, the parameters are set on the touch screen, the whole operation process will be seen at a glance, and several machines can be operated by one person.
Quantity:
  • HC-A06
  • $1000-$2000
  • 1 Piece
  • 30-45 days

1. Stability: Adopt eccentric shaft and wheel transmission structure, the terminal pressure is balanced, the pressure is neat, and the finished product rate is high.

2. High precision: Servo motor driver is used to control the cable alignment, and the terminal crimping control has high precision.

3. Start-up mode: use the steering mechanism to switch the crimping direction at both ends of the cable;

4. Automation: from the incoming line to the line, cutting, peeling, crimping is completed at one time, without labor, saving labor costs;

5. Efficiency: high efficiency, pressing 18000, the machine can work 24 hours;

6. The operation is simple, the parameters are set on the touch screen, the whole operation process will be seen at a glance, and several machines can be operated by one person.


Model: HC-A06 automatic double-head cable terminal machine

Capacity: 100mm long 2400 strips/hour

Applicable wire diameter: 0.8mm_2.5mm (2468 wire, blue, red, white, gray row, rehearsal, etc.)

Processing length: 75mm-9999mm

Stripping length: 1mm-7mm

Cutting error: can be corrected

Compression capacity: 2.0Ton adjustable

Maximum number of cables

P: 20PCS

Maximum line width: 28mm

Detection device: presence or absence of terminals, line detection, terminal detection

Auxiliary device: pre-feeding device, terminal, waste paper winding device

Power supply: AC220 10A 50/60HZ

Special functions: single-headed, double-headed, interval, positive and negative

Working air pressure: 0.6MP (air source needs to be dried and filtered)

Power: 2000W Weight: 480kg Size: L1100mm*H1500mm*W800mm
